In biopharmaceuticals, food and beverages, chemical engineering, advanced materials, cosmetics, and other industries, high-pressure homogenizer is key equipment for achieving nanoscale particle refinement and uniform dispersion. So, how do you choose the equipment that best fits your needs?
Combined with the JUNJIE high-pressure homogenizer, this guide provides you with practical advice on selecting a high-pressure homogenizer, covering four key areas: specific requirements, core specifications, product lines, and after-sales service.
Define Your Needs: What Do You Need to Homogenize?
Choose the Processing Capacity Based on Production Scale
| Production Stage | Recommended Processing Capacity | Application Scenario | Recommended JUNJIE Model |
|---|---|---|---|
| Laboratory R&D | ≤10 L | Small-batch process validation, parameter optimization, and testing of valuable samples | HPW-10 (Laboratory model, servo direct drive, supports micro-sample volumes as low as 20 mL) |
| Pilot-Scale Production | 200–250 L | Bridging laboratory R&D and mass production while validating process feasibility | HPW-250 (Pilot-scale model, 37 kW hydraulic drive) |
| Industrial Mass Production | ≥500 L | Large-scale continuous production requiring 24/7 operation | HPW-500 (Production model, 75 kW hydraulic drive, up to 420 MPa) |
| Fully Customized Applications | Customized according to requirements | Special materials, processes, or application scenarios | HPW-X (Customized model, supporting customized pressure, flow rate, materials, and functions) |
Match the High-Pressure Homogenizer to Material Characteristics
JUNJIE high-pressure homogenizer can be widely applied across six major industries. Different materials have significantly different requirements for homogenization equipment.
| Application | Representative Materials | Homogenization Objective | JUNJIE Solution |
|---|---|---|---|
| Biopharmaceuticals | Liposomes, mRNA vaccines, nanomedicines | Particle size control and activity retention to ensure consistent quality during scale-up | Nanoscale precision homogenization to address particle size control and bioactivity retention |
| Chemical Engineering | Nano-suspensions, chemical emulsions | Efficient dispersion and mass transfer to ensure process stability | Stable scale-up from laboratory to industrial production, shortening development cycles |
| Materials Science | Graphene, nanoceramics, metal slurries | Customized “homogenization–dispersion–stabilization” processes | In-depth analysis of material characteristics with dedicated solutions delivered within 7 days |
| Food & Beverages | Protein beverages, dairy products, plant-based emulsions | Improved mouthfeel and shelf-life stability | Ultrafine particle refinement and stable emulsification to reduce losses and enhance product value |
| New Energy | Battery electrode slurries | Optimized homogenization to improve battery energy density and service life | Lower preparation costs and accelerated product performance upgrades |
| Beauty & Personal Care | Nano-creams, active ingredient encapsulation | Improved efficacy and skin feel to create differentiated premium products | Efficient nano-encapsulation of active ingredients and enhanced system stability |
Key Performance Parameters of High-Pressure Homogenizer
Pressure Range and Accuracy
JUNJIE high-pressure homogenizers features wide-range intelligent pressure control, with pressure levels of up to 420 MPa (60,000 psi).
Higher pressure generally provides stronger material disruption and dispersion capabilities. For nanoscale materials and high-hardness materials, equipment with a maximum pressure of 300 MPa or higher is recommended.
Homogenization Chamber Technology: Diamond Interaction Chamber
The entire JUNJIE product range adopts diamond interaction chamber technology, a mainstream technology for high-pressure microfluidic homogenization.
Inside specially engineered diamond microchannels, materials form supersonic jets. The synergistic effects of intense shear forces, head-on jet collision forces, and instantaneous cavitation efficiently reduce materials to the nanoscale while achieving highly uniform dispersion.
- Y-type chamber: Suitable for emulsification and dispersion
- Z-type chamber: Suitable for cell disruption and particle size reduction
- Fixed internal microchannels: Help ensure consistent and uniform particle-size results between production batches
Temperature Control System
For heat-sensitive materials, such as enzymes and protein-based drugs, temperature control is critical.
JUNJIE equipment can be equipped with a sanitary-grade temperature control system to effectively reduce material temperature and help preserve the activity of sensitive ingredients.
Level of Intelligent Automation
JUNJIE equipment is equipped with a high-definition touchscreen control system supporting:
- Program setting and data recording
- Remote real-time monitoring
- Data traceability
- GMP/GLP-compliant data recording
Materials and Hygiene Standards
- Materials in contact with the product: GMP- and FDA-compliant 316L and 17-4PH stainless steel, tungsten carbide, zirconia, high-molecular-weight polyethylene, and other materials are available.
- Cleaning and sterilization: The pilot-scale HPW-250 and production-scale HPW-500 integrate CIP/SIP in-line backflushing systems, combining cleaning and sterilization without disassembly and effectively reducing the risk of clogging.
JUNJIE High-Pressure Homogenizer Product Series
JUNJIE offers four major product series covering the entire process from laboratory R&D to industrial-scale production.
Laboratory Model – HPW-10L
Designed specifically for laboratory applications, the HPW-10 is a compact 10 L high-pressure homogenizer. It uses a servo electric-cylinder drive for smooth operation and precise pressure control and supports processing of micro-samples as small as 20 mL, making it ideal for small-batch R&D and laboratory applications.
Key Advantages:
- Precise R&D adaptation: Minimum sample volume of 20 mL, with approximately 1 mL residual volume
- Flexible and efficient operation: High-definition touchscreen control with automatic data recording and traceability
- Safety and hygiene: Sanitary-grade materials with an optional precision temperature control system
Pilot-Scale Model – HPW-250L
Designed for the pilot-production stage, the HPW-250 bridges laboratory R&D and industrial-scale production.
The equipment features a 37 kW power unit and hydraulic drive system, enabling efficient batch processing of various high-viscosity and highly agglomerated materials.
Key Advantages:
- Smooth transition from pilot production to mass production
- High-pressure, high-efficiency processing: Maximum pressure of up to 420 MPa
- Flexible modular expansion: Integrated CIP/SIP in-line backflushing system effectively reduces the risk of clogging
Production Model – HPW-500L
The HPW-500 is designed for large-scale homogenization during mass production, with a focus on high-volume continuous processing.
Equipped with a 75 kW high-power drive unit, it supports 24/7 continuous operation and can handle high-viscosity and strongly agglomerated materials under demanding production conditions.
Key Advantages:
- Stable large-scale output: 500 L processing capacity and 8 L/min flow rate
- Industrial-grade reliability: Hydraulic drive technology with high power-conversion efficiency
- Intelligent quality improvement and cost reduction: Rapid CIP/SIP online cleaning minimizes downtime
Customized Model – HPW-X
Powered by core high-pressure microfluidic technology, the HPW-X enables precise particle-size control from the nanoscale to the microscale.
Based on the “customized to your needs” service philosophy, the system can be tailored according to processing capacity, material characteristics, and process requirements, including the drive system, homogenization chamber structure, and control system.
Customization Options:
- Adjustable parameters: Pressure level and processing flow rate can be configured according to requirements
- Customized materials: 316L stainless steel, food-grade seals, corrosion-resistant coatings, and more
- Flexible modules: Optional intelligent control systems, sterile components, and other modules
- Precision and reliability: Mature industrial-grade manufacturing standards for stable operation under ultra-high pressure
Consider After-Sales Service and Technical Support

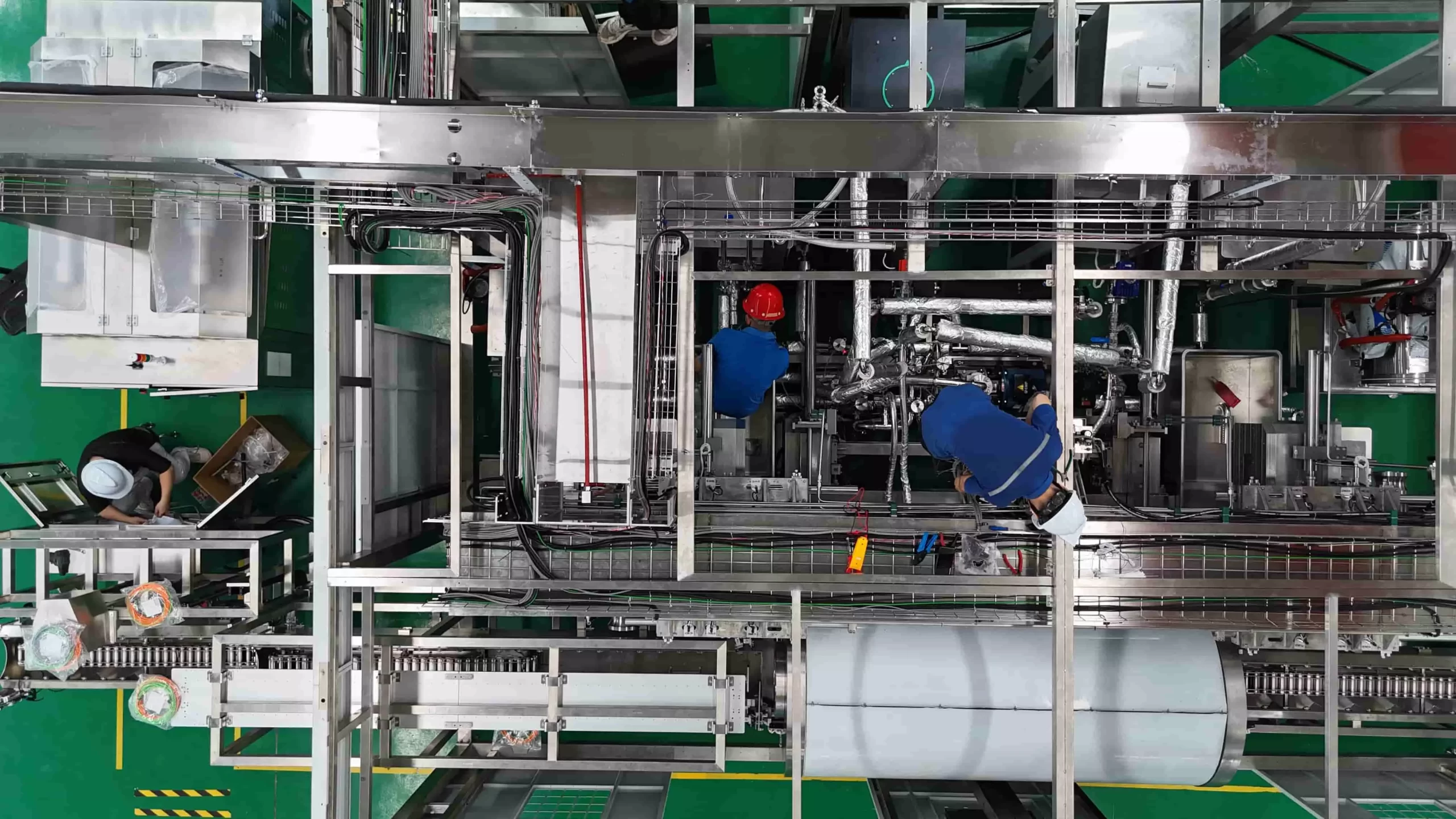

JUNJIE provides one-stop services covering production-line design, complete equipment assembly, after-sales maintenance, and technical support, helping ensure stable quality and efficient delivery.
Operation and Maintenance Services
- Standard installation and training: Equipment positioning, pipeline sealing, commissioning, and calibration based on the customer’s site conditions. Operators and engineers receive role-based training through on-site, remote, or training-center sessions.
- Routine maintenance and spare parts: Regular maintenance plans and regional spare-parts warehouses stocked with original components for rapid delivery.
- Basic software support: Installation, version updates, and troubleshooting for the equipment control system software.
Testing Services
- Particle-size consistency verification throughout the entire production process: Covering laboratory trials, pilot-scale production, and industrial mass production.
- Dedicated material-adaptability testing under ultra-high-pressure conditions: Customized testing for high-viscosity, heat-sensitive, and other challenging materials.
Technical Support
- Technical planning in advance: Technology-oriented planning recommendations based on industry trends and customer objectives.
- Long-term equipment condition tracking: Dedicated technical files for industrial customers, with regular technical condition assessments.
- Technical problem solving: Technical experts provide solutions for complex application and process challenges.
High-Pressure Homogenizer Buying Summary
| Purchasing Dimension | Key Considerations | JUNJIE Advantage |
|---|---|---|
| Material Characteristics | Viscosity, particle size, hardness, heat sensitivity | Covers six major application fields with customized process solutions |
| Processing Capacity | Laboratory R&D (10 L), pilot scale (250 L), mass production (500 L) | Four product series covering all production stages |
| Pressure Range | Nanoscale materials are recommended to use equipment rated above 300 MPa | Maximum pressure of up to 420 MPa |
Choosing a high-pressure homogenizer is not simply about selecting the equipment with the highest pressure or largest capacity. The key is to match the equipment with your material characteristics, processing scale, target particle size, production requirements, and future expansion plans.
From laboratory-scale research to pilot-scale validation and industrial mass production, JUNJIE provides a complete range of high-pressure microfluidic homogenization solutions, helping customers achieve more precise particle-size control, more stable dispersion, and more efficient scale-up.
